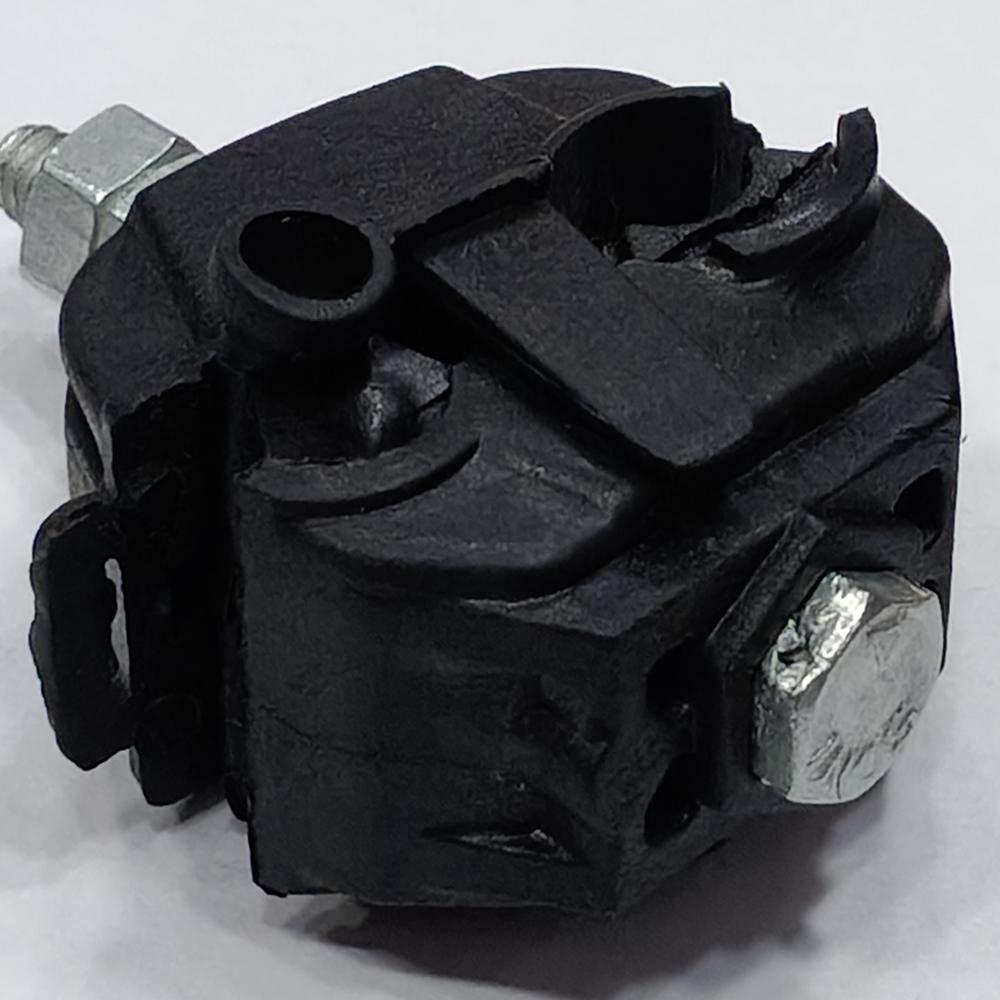

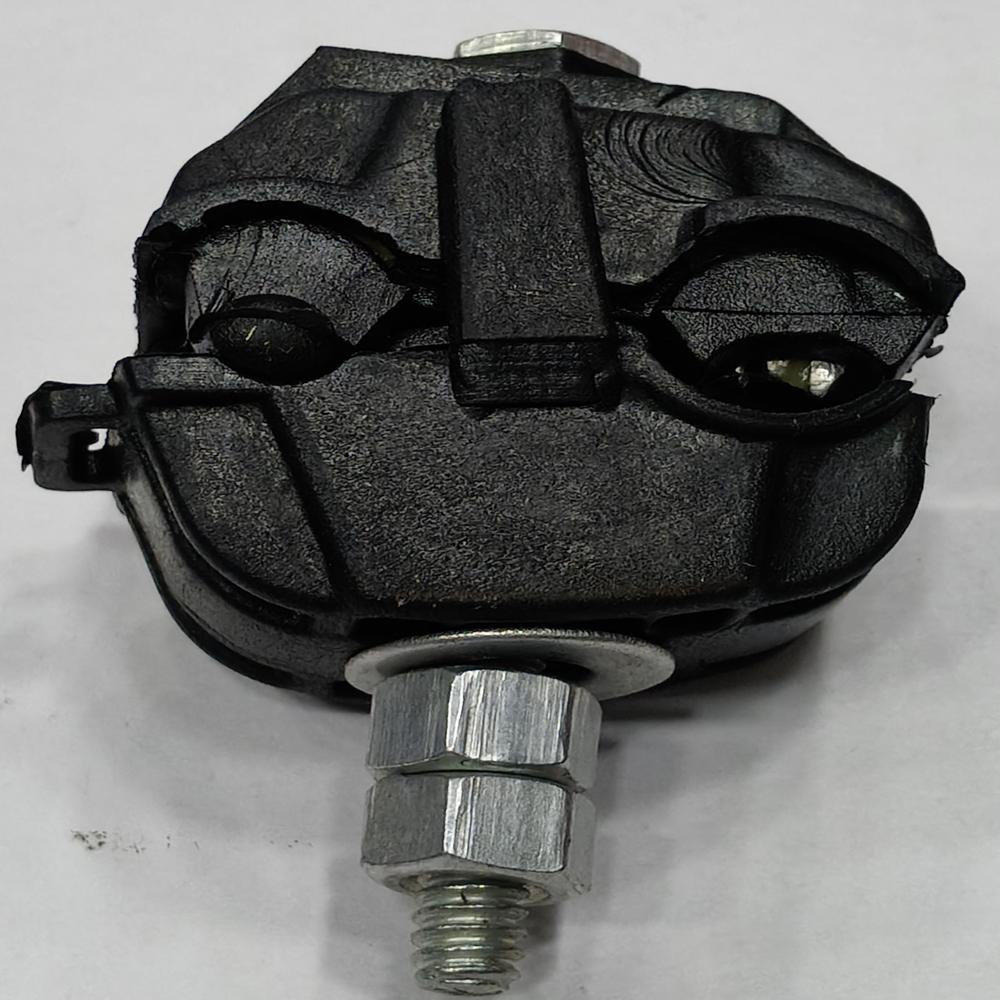

Insulation Piercing Connector

Name: Insulation Piercing Connector
Brand: MAHALAXMI CABLES & CONDUCTORS
Price: 18.0 INR
Availability: InStock

18.0 INR/Piece

Get a Price/Quote

Product Details:

Install Type Tool-free, tightening by insulated shear head nut
Dielectiric Strength 12 kV/1min
Features Waterproof, easy installation, anti-corrosion, reliable electrical contact, tool-free operation
Insulation Double insulation protection
Conductor Shape Round
Rated Temperature -30C to +60C
Number of Conductor Suitable for 2 conductors (main and tap)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Insulation Piercing Connector Price And Quantity

Price 18.0 INR/Piece
Minimum Order Quantity 100 Piece

Insulation Piercing Connector Product Specifications

Size Main 35-150 mm2, Tap 6-35 mm2
Install Type Tool-free, tightening by insulated shear head nut
Dielectiric Strength 12 kV/1min
Voltage Up to 1 kV (1000V) rated
Jacket Color Black
Features Waterproof, easy installation, anti-corrosion, reliable electrical contact, tool-free operation
Connector Color Black/Blue
Conductor Material Copper or Aluminum
Insulation Double insulation protection
Insulation Material UV-resistant polymer
Length Standard sizes available, customizable as per request
Conductor Shape Round
Dimension (L*W*H) Approx. 70 mm x 60 mm x 50 mm
Rated Temperature -30C to +60C
Number of Conductor Suitable for 2 conductors (main and tap)
Application Overhead line tap-off, street lighting connection, LV ABC (Aerial Bundled Cable)
Color Black body with blue cap
Operating Temperature -30C to +60C
Tensile Strength High mechanical strength
Product Type Insulation Piercing Connector
Jacket Material High-strength polymer blend
Storage Temperature -40C to +80C
Locking Type Shear head bolt
Material Weather-resistant thermoplastic, metal alloy teeth
Usage & Applications Power distribution, lighting systems, service connections
Conductor Type Solid/Stranded
Diameter Compatible with listed cross-section sizes
Weight Approx. 120 g
Cable Type LV ABC (Low Voltage Aerial Bundled Cable)
Impedance Low contact impedance

Salt Mist Resistance Yes, for coastal applications
Fire Retardant Meets IEC flame retardant standards
Contact Blades Material Tin-plated copper alloy
UV Resistance Yes
Shear Head Break-off Torque Pre-calibrated for optimal contact
Connection Type Parallel Branch/ Tap-off
Maintenance Required No periodic maintenance necessary
Ingress Protection IP 33 - IP 54 (depending on configuration)

Insulation Piercing Connector Trade Information

FOB Port FOR Works (Ours)
Payment Terms Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque
Supply Ability 3000 Piece Per Day
Delivery Time 2 Days
Packaging Details 250nos per bag
Main Export Market(s) Asia
Main Domestic Market All India

Product Description

Grab our Insulation Piercing Connector and experience peerless performance in overhead line and LV ABC connections. With dominant features like tool-free installation, a pre-calibrated break-off torque, and maintenance-free operation, this connector is the virtuoso in its class. Manufactured with a robust tin-plated copper alloy and weather-resistant polymers, it guarantees reliable electrical contact and instant savings through reduced labor costs. Its competitive pricing and state-of-the-art UV and salt mist resistance make it ideal for demanding coastal and urban environments. Secure your supply from India's leading distributor, manufacturer, supplier, and trader today.

Insulation Piercing Connector: Application Areas & Distinct Advantages

Designed for use in power distribution, street lighting, and service connections, the Insulation Piercing Connector excels in connecting aerial bundled cables. Its advantages include waterproofing, corrosion resistance, and tool-free operation for rapid, secure branch and tap-off connections. Enhanced with UV and fire retardant materials, this connector is built for lasting reliability in harsh coastal or urban environments, offering electrical safety, competitive installation, and a maintenance-free solution for both copper and aluminum conductor cables.

Reliable Supply, Fast Dispatch & Global Transport Services

Our Insulation Piercing Connectors are always in stock, ensuring swift delivery and satisfaction for urgent requirements. With stock ready to be dispatched across India and exported internationally, you can count on seamless logistics. We accept flexible payment terms to ease your procurement process, and our established transport services facilitate prompt and safe delivery. Serving main export markets in Asia, Africa, and the Middle East, we commit to reliable availability and timely dispatch for all orders.

FAQ's of Insulation Piercing Connector:

Q: How does the Insulation Piercing Connector ensure reliable electrical contact?

A: The connector uses metal alloy blades made from tin-plated copper and features a pre-calibrated shear head bolt that guarantees optimal, secure contact with minimum impedance. This technology eliminates the need for periodic maintenance.

Q: What are the primary usage areas for this connector?

A: It is ideal for low voltage aerial bundled cable (LV ABC) networks, overhead line tap-off, street lighting, and service connections in both urban and coastal environments.

Q: What are the benefits of tool-free operation in this connector?

A: Tool-free, shear head nut tightening reduces installation time, eliminates the need for specialized tools, and ensures consistent, safe connections, resulting in instant savings and minimized labor costs.

Q: Where can the Insulation Piercing Connector be installed safely?

A: It can be safely used outdoors in a variety of climates, including coastal areas, due to its UV resistance, salt mist protection, weather-proof housing, and flame-retardant properties.

Q: What is the process for installation and do you need maintenance afterward?

A: Installation is simple-place the connector on the main and tap conductors, tighten the shear head bolt until it breaks off, and the connection is complete. No periodic maintenance is necessary due to its durable, corrosion-resistant design.

Q: How quickly can orders be fulfilled and delivered if needed in bulk?

A: Stock is ready for immediate dispatch. With established transport services and global coverage, orders-large or small-are promptly shipped to meet both domestic and export requirements efficiently.
